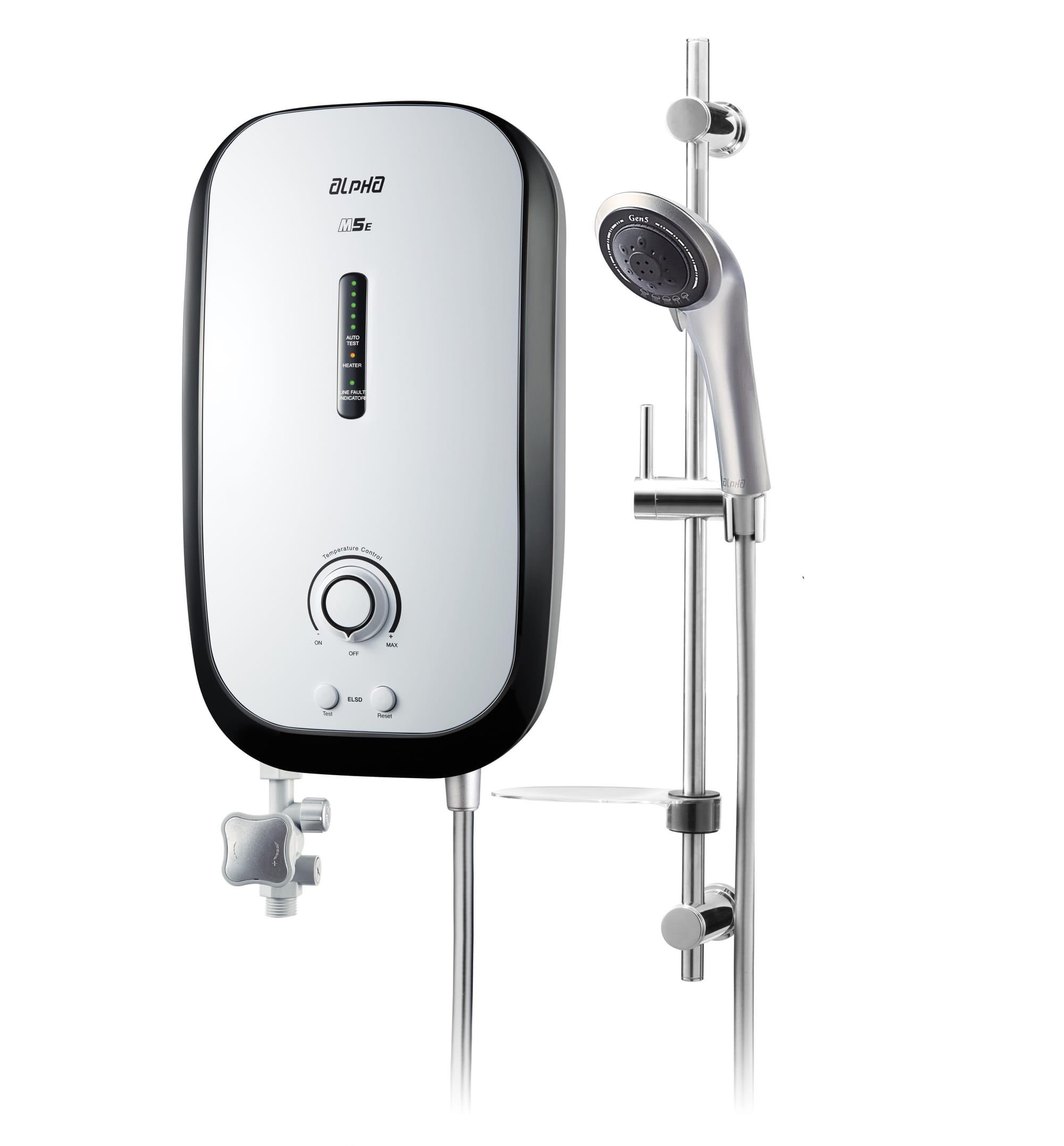

M5 Series - Point of Use 3.5 kW
M5 SERIESwith industry leading safety featuresAverage life expectancy of 20 years vs 8/10 years as compared to Geyser/Storage systems
|  |
Need something that is advanced?
M5 shower units are like no other on the market. Built-in intelligence and on-board microchip incorporate advanced programs to monitor safety status and performance levels even before the system is activated, as well as during usage.
 |  |  |
"M5 series comes standard with Advanced Safety Features (FIRST IN INDIA), saves not just energy and water, but also helps you save money on your monthly electricity / energy bills"
Hot water in the bathroom
 |  |  | ||
3 - 5 seconds | 3 - 4 l/min | 35 - 500 C |

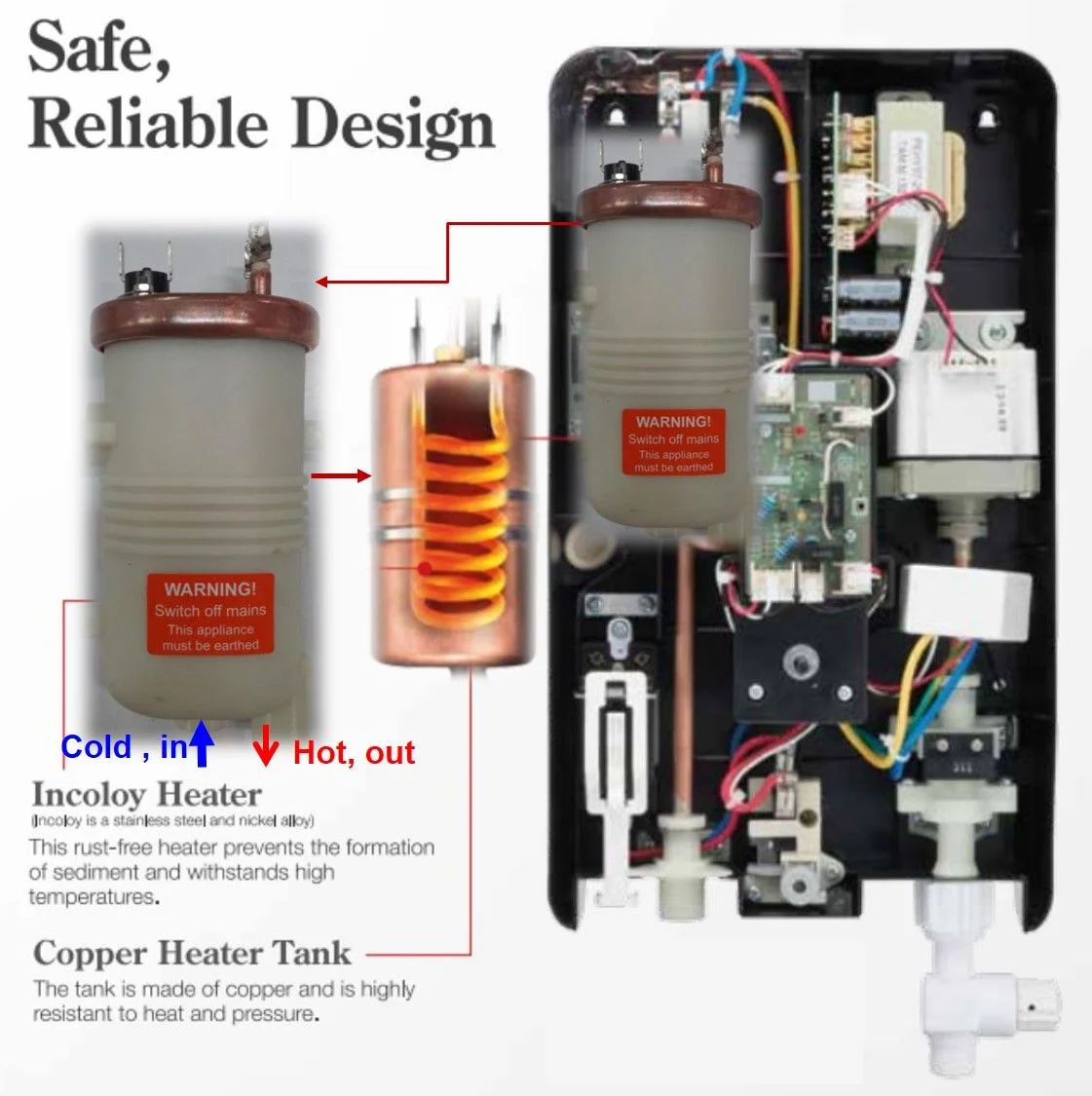

SHOWER HEATER INTERNAL STRUCTURE

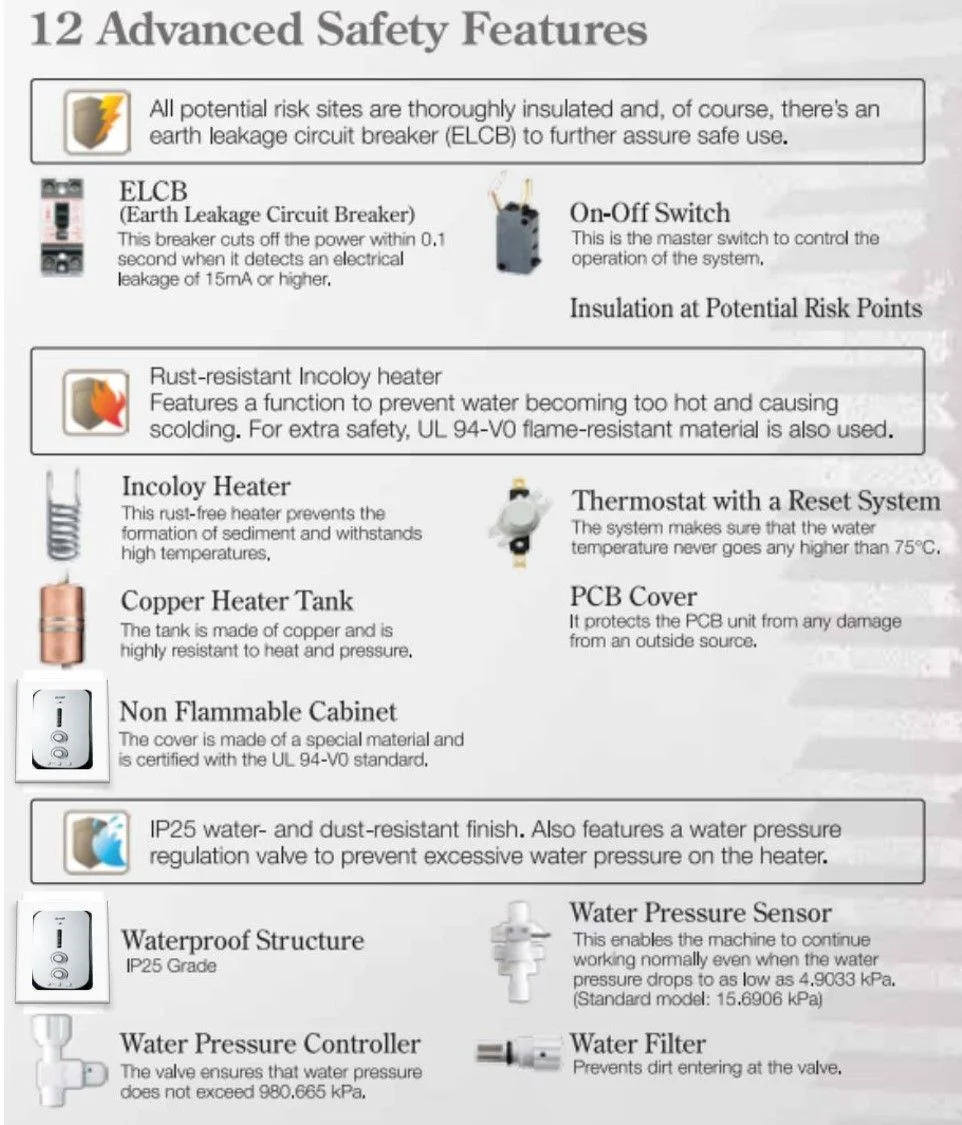

Safety Features
ADVANCED FEATURES
TECHNICAL SPECIFICATION
| Heater Power Rating | 3.5kW, 220 - 240V~50Hz |
|---|---|
| Pump Type | DC Pump |
| Pump Rating | 55W |
| Noise Level | <40dB |
| Water Connection | 15mm dia. (1/2" BSP) |
| Operating Condition | Open outlet |
| Protection Against Electric Shock | Class 1 |
| Water Temperature Control | Electronics |
| Degree of Protection | Class IP25 |
| Minimum Flow Rate | 3 liters/minute |
| Minimum Pressure | 20 kPa (0.2 bar/2.9 psi) |
| Maximum Pressure | 0.38 MPa (3.8 bar/55 psi) |
| Heater Dimension | 235 (W) x 404 (L) x 92 (H) mm |
| Nett Weight | 5.4 kg |
LIMITED WARRANTY
WATER HEATER LIMITED WARRANTY - 2020.pdf
